Name: Cemb ER90 EVO Automatic Touchless Wheel Balancer
SKU: 295741

Product Details ＋

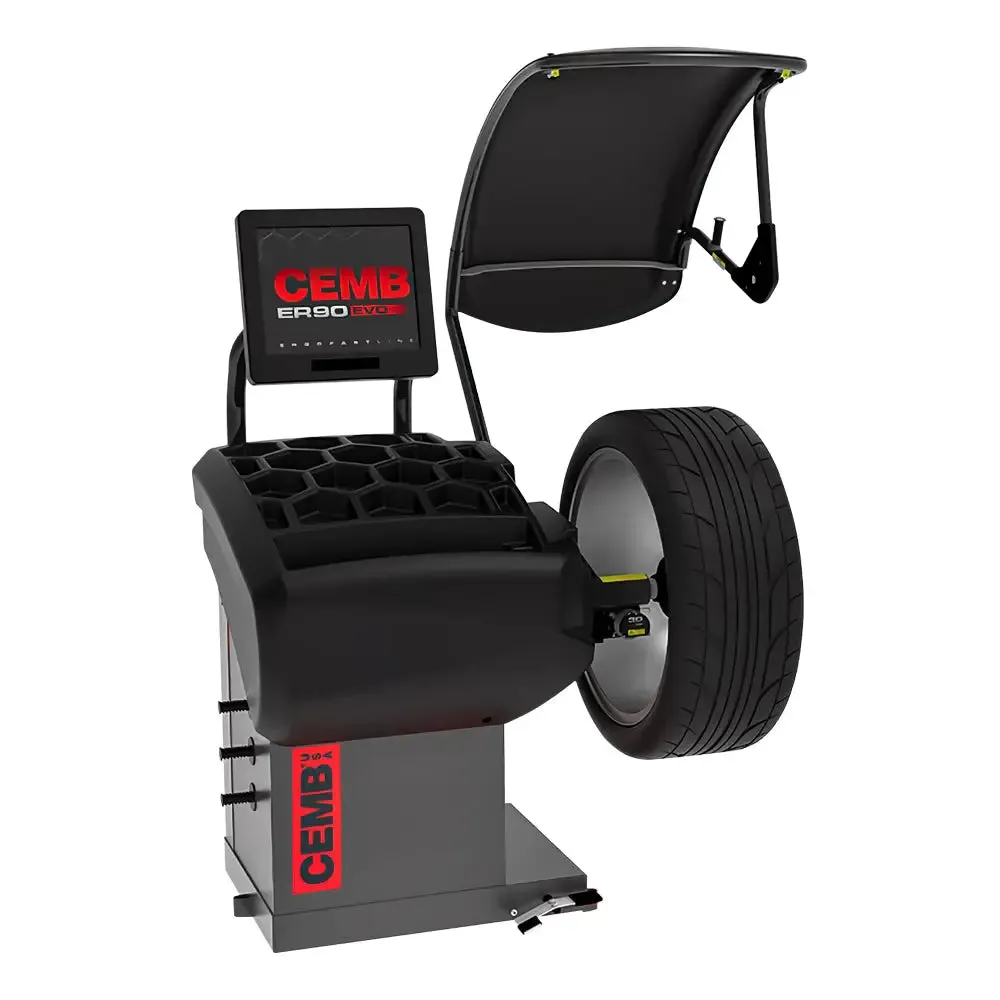

The CEMB ER90 EVO is a cutting-edge, fully automatic wheel balancer that eliminates the need for a check-spin with its innovative no-contact balancing technology. Simply press a button, and the ER90 EVO automatically reads wheel data in seconds, including diameter and distance. It then pinpoints the exact location to place counterweights (clip-on or stick-on) for perfect balancing.

Here's what makes the CEMB ER90 EVO stand out:

Automatic Everything: No check-spin required, thanks to the no-contact balancing system.
Fast and Accurate: Automatic data detection and balancing in just seconds.
AutoAdaptive Mode: This intelligent software adjusts balancing tolerance based on the wheel's weight and dimensions to ensure maximum driving comfort by eliminating vibrations on the steering wheel.
One Plane Balancing (OPB): A revolutionary feature, OPB eliminates both static and dynamic imbalances with a single weight placed in the optimal position within the rim. This saves time and money while maximizing productivity.

Features:

Automatic Everything: No check-spin needed, full automation.
6-Second Balancing: Ultra-fast and efficient wheel balancing.
AutoAdaptive Comfort: Smart software for vibration-free driving.
One-Plane Balancing: Eliminates imbalance with a single weight.
3D Laser Scan: Precise positioning for stick-on weights.
Pneumatic Clamping: Easy and secure wheel mounting.
HubMatch: On-car eccentricity cancellation for perfect balance.
Ergonomic Design: User-friendly and comfortable operation.
Side Laser: Accurate clip-on weight placement.
Electric Brake: Secure wheel locking for stability.
Wheel Guard: Protects against damage during balancing.
EMS Sonar: Measures wheel conicity for reduced side slip.
LA Sonar: Non-contact tread depth measurement in three areas.
Touch Diagnosis: Full rim analysis for two-plane eccentricity.
Printer: Generates reports for complete service records.

Specs:

Wheel Clamping Type: Pneumatic
Max. Tire Diameter: 40in (1016 mm)
Max Rim Diameter: 30in (765 mm)
Max Rim width: 20in (510 mm)
Maximum Wheel Weight: 165 lbs. (75kg)
Power Supply: 220V, 1ph, Air
Shipping Weight: 485 lbs. (220 kg)

Ref No.
ER90
ER90EVO

Similar Products
ER100 EVO
ER100GT

Ref Name
Automatic wheel balancer
No-contact wheel balancer
One-plane wheel balancer
AutoAdaptive wheel balancer

Application:

Tire Shops
Auto Repair Shops
Car Dealerships

Includes:

1 x 41FF83148 - Manual Lock Kit
1 x 40FF88351 - Miniature Cone
1 x 40FF43715 - Small Cone
1 x 40FF43716 - Medium Cone
1 x 40FF61043 - Large Cone
1 x Rim Width Gauge
1 X Weight Hammer

Acc. Bundles:

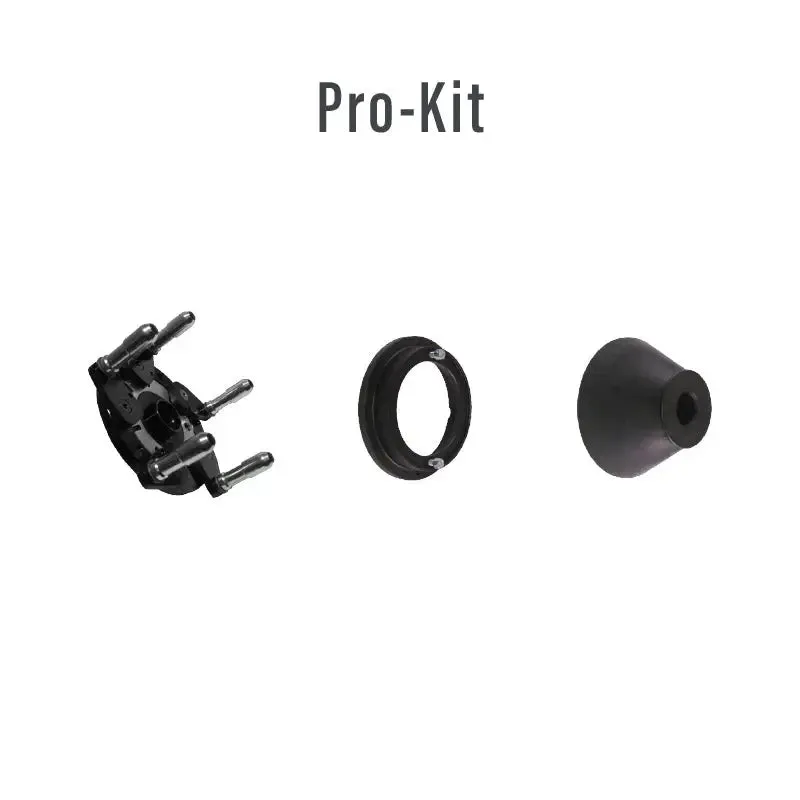

Pro-Kit Bundle - PROKIT: This kit comes with everything you need to do light truck wheels and lug-centric wheels. With the included adapters, you'll be able to get the job done quickly and easily.

- Pin Plate Adaptor: 41FFA6478 Manual, 41FFA5298 Pneumatic
- 2-Pieces Truck Cone Kit - 41FF86174

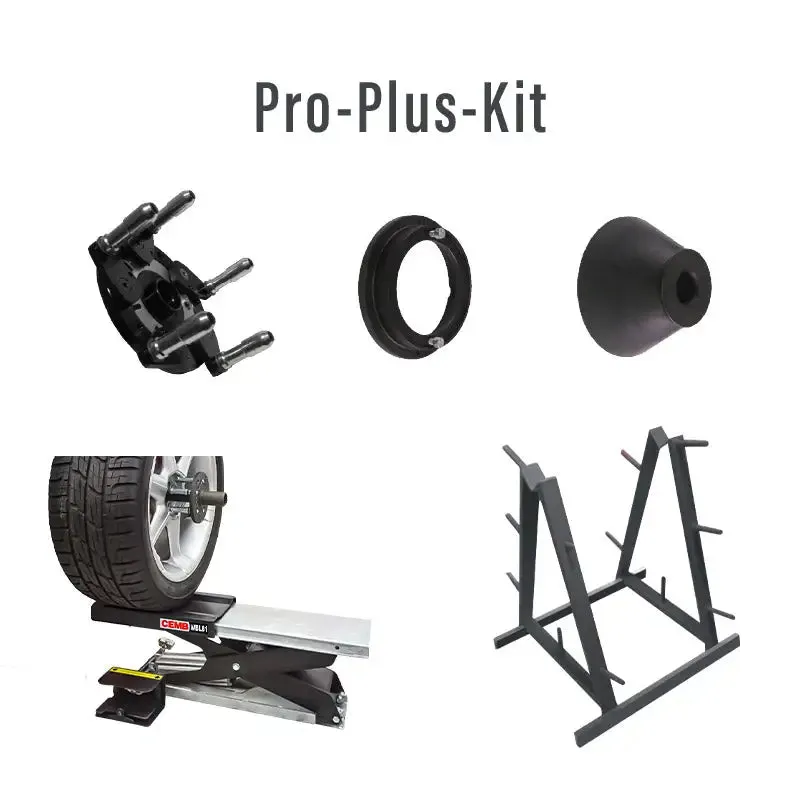

Pro Plus Kit Bundle - PROPLUS: This kit provides you with the necessary adapters to do light truck and lug-centric wheels while also providing a pneumatic wheel lift to lift heavy wheels. Plus, it comes with a storage rack for adapters.

- Pin Plate Adaptor: 41FFA6478 Manual, 41FFA5298 Pneumatic
- 2-Pieces Truck Cone Kit - 41FF86174
- Pneumatic Wheel Lift - 46FL85170
- Accessory Rack - 41FF03151
