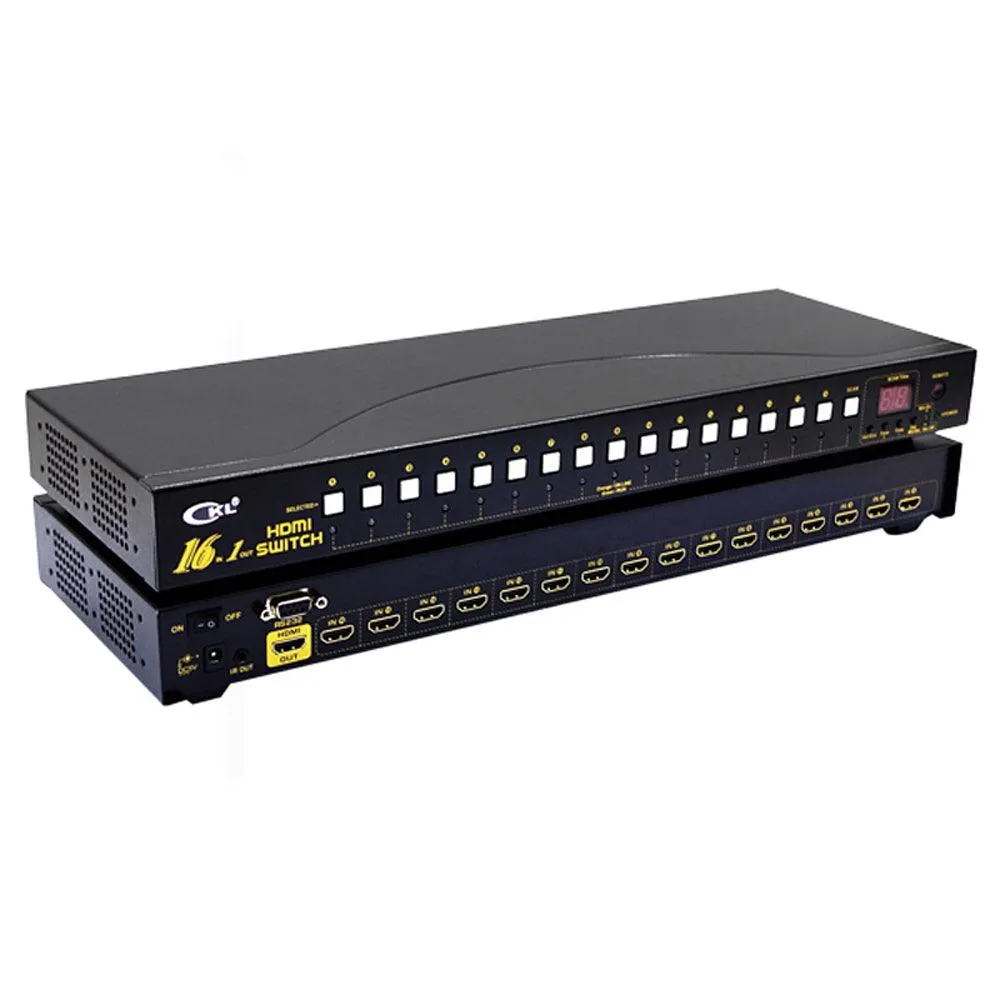

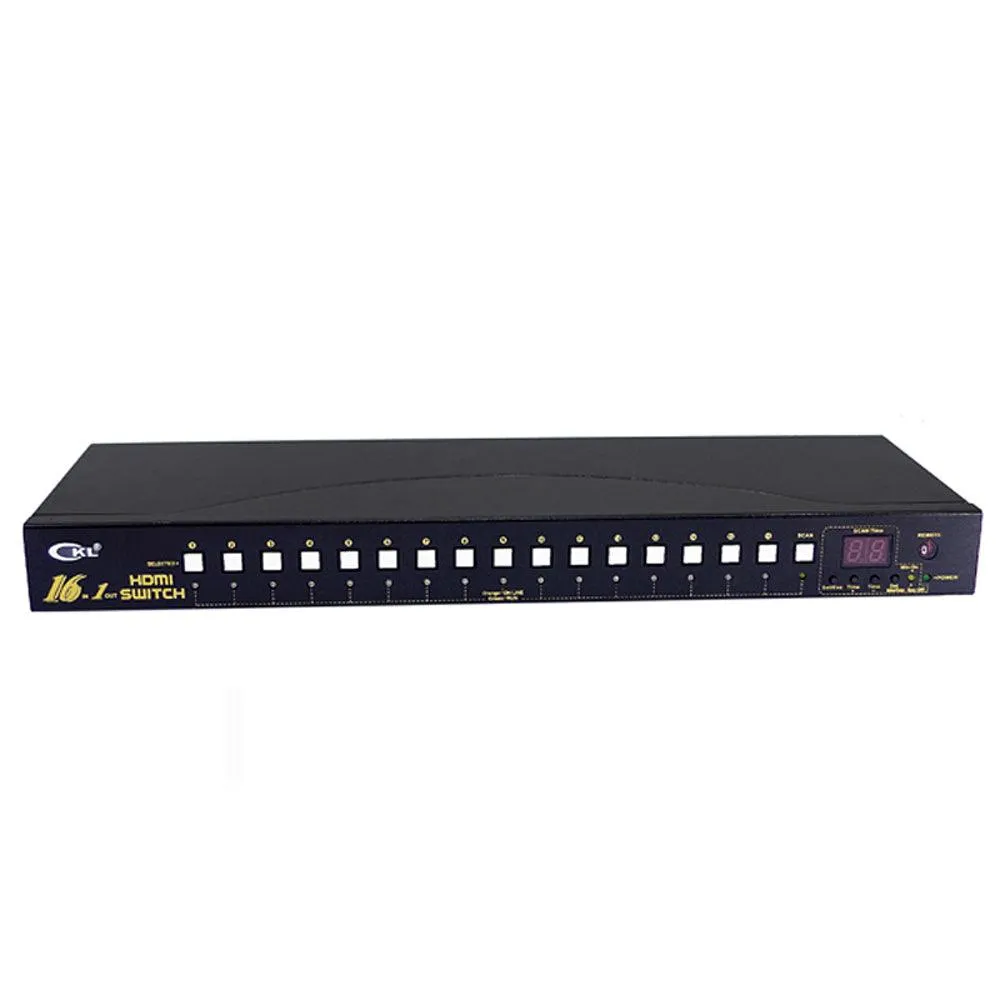

This 16 Port HDMI Switch allows you to quickly connect 16 HDMI sources to your HDMI display and easily switch between them via front panel push buttons, RS-232 or IR remote control. The front panel’s LEDs indicate the source device selected for the display at a glance.

The High-end HDMI switch supports 1080P resolution for high definition displays;Supports Auto Switching modes for auto port selection; Instant switching for a smooth video transition between HDMI ports with increased efficiency; and features a built-in bi-directional RS-232 serial port that allows the switch to be controlled through a high-end controller, PC, and/or home automation/home theater software package.

Product Features:

• Switch videos between 16 computers
• Support auto detection.If one computer is powered off, it will automatically switch to the next powered-on computer
• Support auto scan function (from 5second to 59mins)
• Support HDCP, Support EDID
• Support 480P,720i,720P,1080i and 1080P
• Support 3D

Switch Modes:

1. Push button
2. IR Remote control switch Control distance≤10meter
3. RS232 control switch(16 hex)
4. Auto Scan

Auto scan time set operation instructions:

1. Set/ESC:Set up/ Drop out;
2. Time /Time-:Time added/Time decreased;
3. Set Min/sec: Minutes or seconds switch of setting up interval time.(It is minute status when the orange LED light is on. )

For example:

If you need to set up 45 seconds.Firstly,you should press Set/ESC. At this point the LED digital tube flashes, then you press Time button until the LED digital tube displays 45, then press Set/ESC button. The setting is finished when the LED digital tube doesn’t flash.If the set time is minute,firstly,you should press Set Min/se button, At this point the LED light with Min on/sec off is on.Then you could operate according to the method of setting up second.
