Item Number :2492975

UPC Code : 782520862008

UNSPSC Code : 39111700

Brand :Hubbell Lighting

APPLICATIONS

Designed for indoor installation in commercial or industrial applications. Emergency AC power is supplied to lighting fixtures equipped with incandescent linear fluorescent compact fluorescent or LED lamps. The lighting load can be installed at a distance of up to 1000 feet from the LiteGear central lighting inverter. Observe all required AC conductor sizing requirements.

CONSTRUCTION

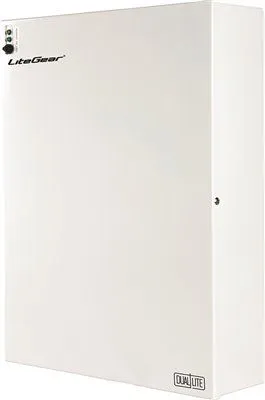

The LiteGear enclosure and cover are constructed of heavy-duty 18 gauge steel with a white powder-coat paint finish.

Electronics

• Input/Output: 120/120VAC or 277/277VAC 60 Hz
• Input/Output Connections: Terminal block
• Operating Temperature Range
• Charger Type: Variable rate float
• AC Lockout: Prevents battery discharge following installation when branch circuit AC power is not present.
• Low Voltage Battery Disconnect: Protects the battery from damaging "deep discharge" conditions during prolonged power failures.
• Brownout Protection: Automatically transfers to emergency power when utility voltage drops to a point that would cause fluorescent lamps to extinguish.
• Overload and Short Circuit Protection: AC and DC protection provided by fuses and automatic shut down.
• Test Means: Manual "TEST" button.
• LED Indicators: "AC-ON/Charging" (green) "Inverter-ON" (amber).


Battery

• Maintenance-free sealed lead calcium with 10 year rated life.
