Description：

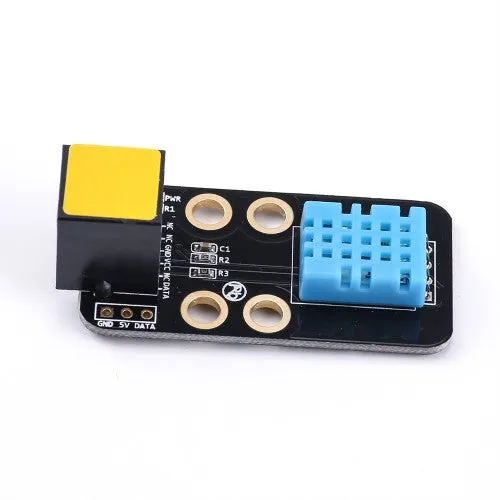

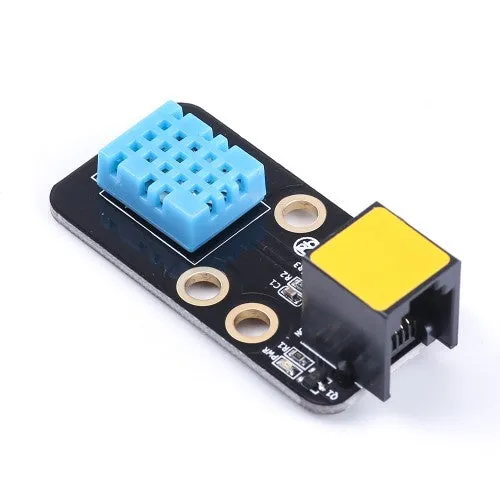

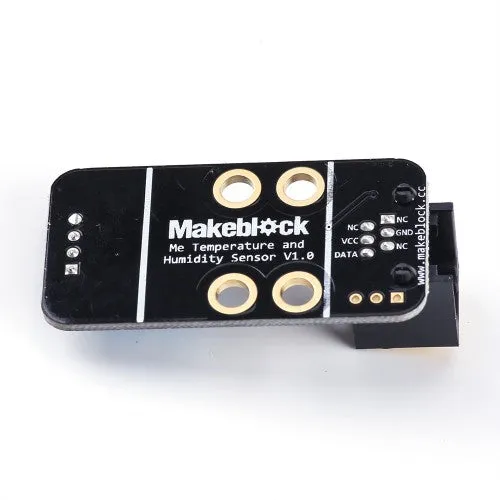

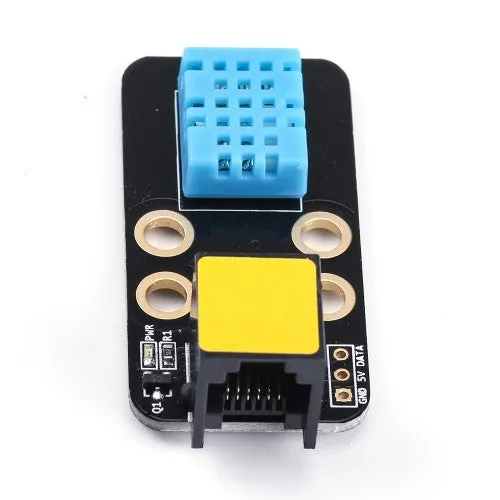

Me Temperature and Humidity Sensor is a sensor that contains a calibrated digital signal output. It adopts specific digital module collecting technology and temperature-humidity sensing technology to ensure high reliability and excellent long-term stability. This module can measure the temperature from 0℃ to 50℃. Users can use it to build a cost-effective temperature and humidity monitoring system. Its yellow ID means that it has a single-digital port and needs to be connected to the port with yellow ID on .

Features:

• Small size and low power consumption;
• Strong anti-interference ability;
• Total calibrated digital output;
• White area of module is the reference area to contact metal beams;
• Support Arduino IDE programming and provide runtime library to simplify programming;
• Adopt RJ25 port for easy connection;
• Provide pins to support most Arduino Baseboards.

Specification:

• Power supply voltage: 5V DC;
• Control mode: Single bus digital signal;
• Power supply current: max 2.5mA;
• Temperature range: 0-50℃ ± 2℃
• Humidity range: 20-90% RH ± 5% RH;
• Precision: 1% RH, 1℃;
• Module dimension: 51 x 24 x 18mm (L x W x H);

Size Chart:

Height/Width/Length: 51 x 24 x 18mm (2 x 1 x 0.7inch)

Part List:

1 x Me Temperature and Humidity Sensor
