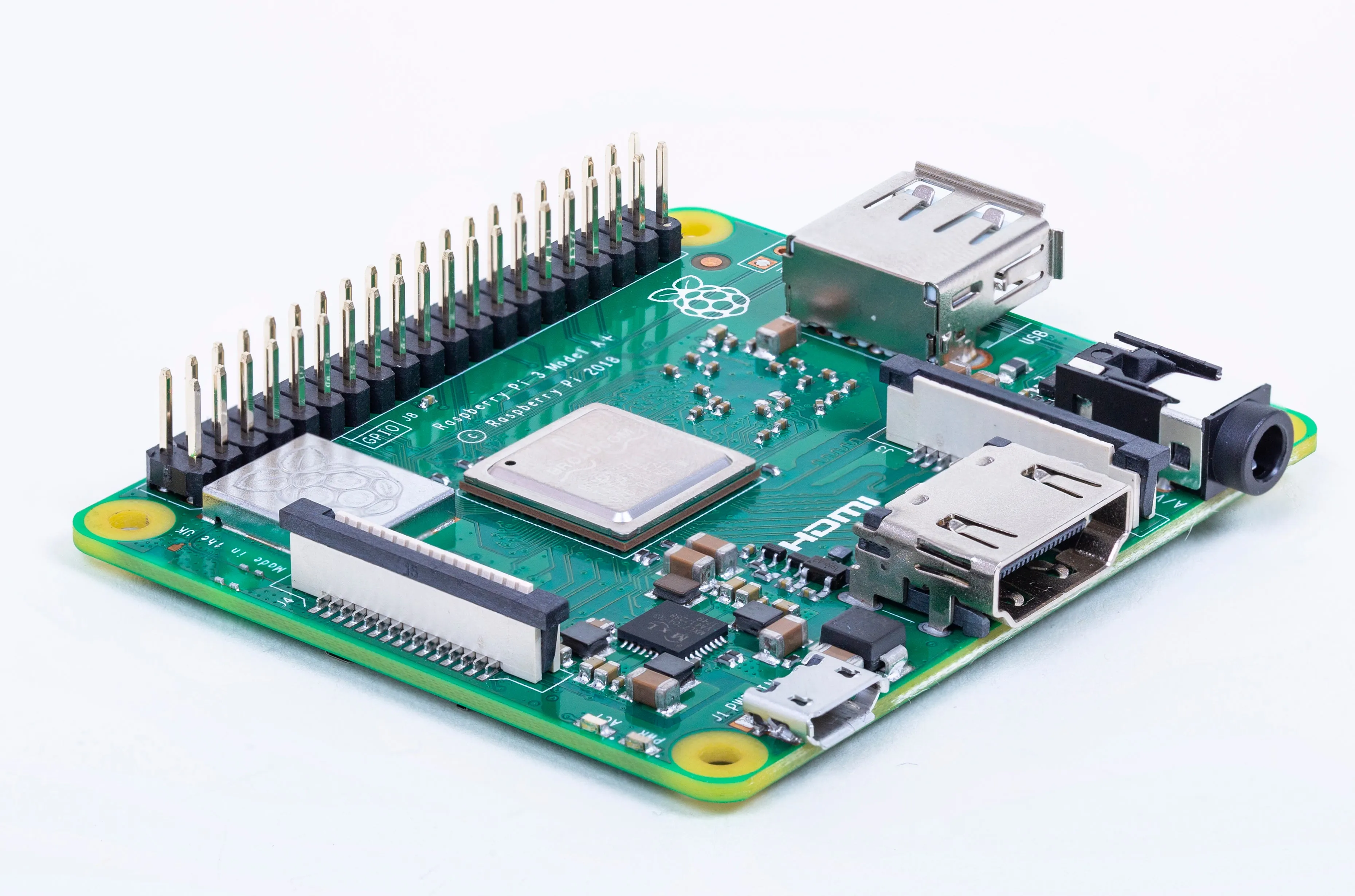

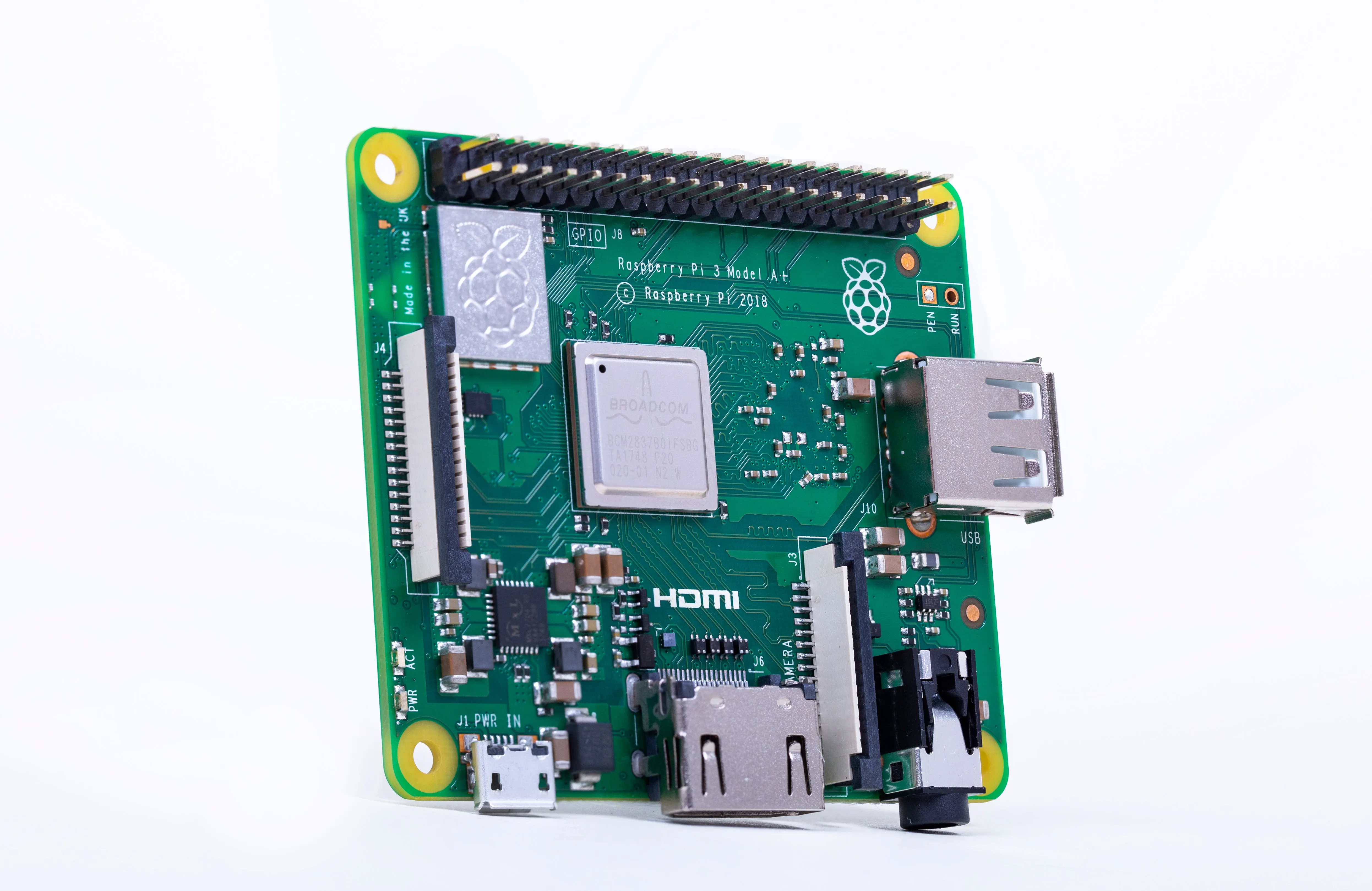

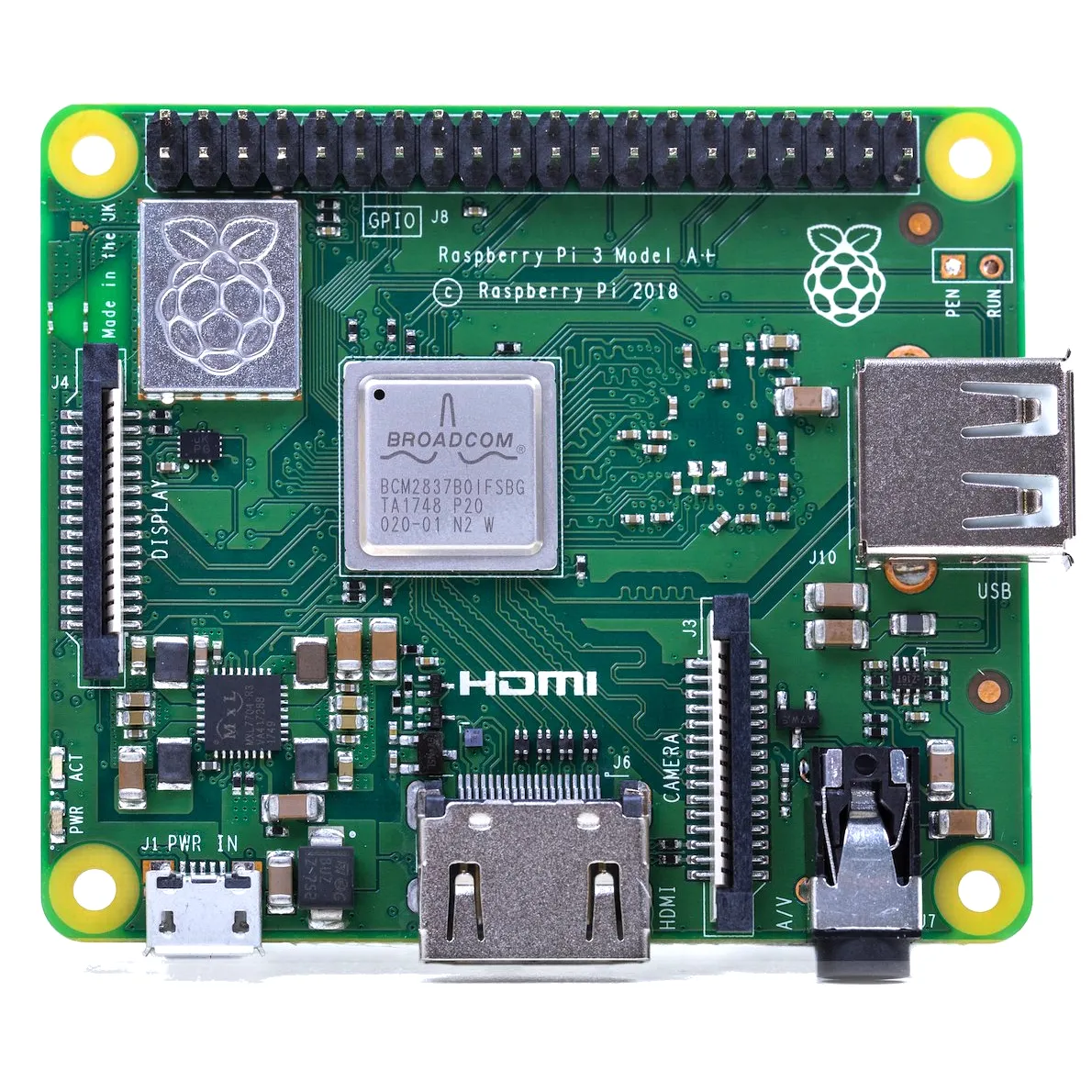

The Raspberry Pi 3 Model A , like the , boasts a 64-bit quad core processor running at 1.4 GHz, dual-band 2.4 GHz and 5 GHz wireless LAN, and Bluetooth 4.2/BLE.
The dual-band wireless LAN comes with modular compliance certification, allowing the board to be designed into end products with significantly reduced wireless LAN compliance testing, improving both cost and time to market.
The Raspberry Pi 3 Model A has the same mechanical footprint as the Raspberry Pi 1 Model A .
We have a .
Be sure to check out our if you have any questions.
| Processor: |
Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4 GHz |
|
Memory: |
512MB LPDDR2 SDRAM |
|
Connectivity: |
2.4 GHz and 5 GHz IEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2/BLE |
|
Access: |
Extended 40-pin GPIO header |
|
Video & sound: |
1 × full size HDMI MIPI DSI display port |
|
Multimedia: |
H.264, MPEG-4 decode (1080p30); H.264 encode (1080p30); OpenGL ES 1.1, 2.0 graphics |
|
SD card support: |
Micro SD format for loading operating system and data storage |
|
Input power: |
or 5 V DC via GPIO header |
|
Environment: |
Operating temperature, 0–50°C |
|
Compliance: |
for a full list of local and regional product approvals |
|
Production lifetime: |
The Raspberry Pi 3 Model A will remain in production until at least January 2023 |
Physical Specifications:
