Product Details
＋

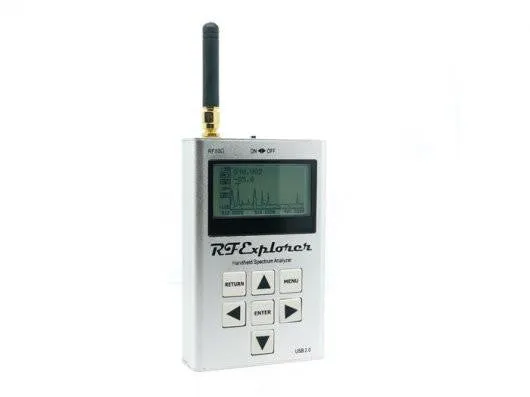

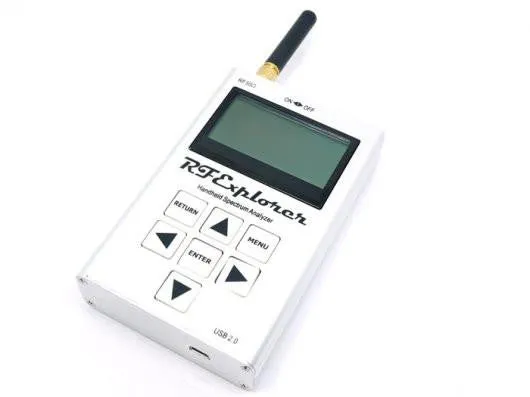

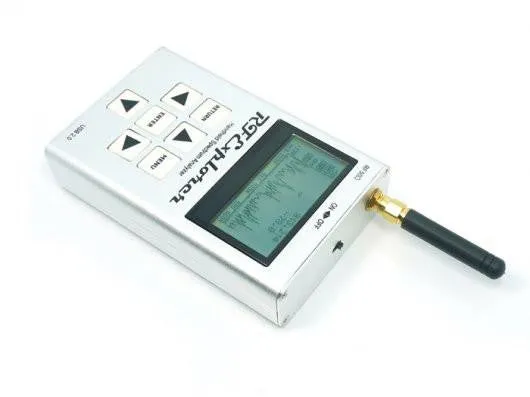

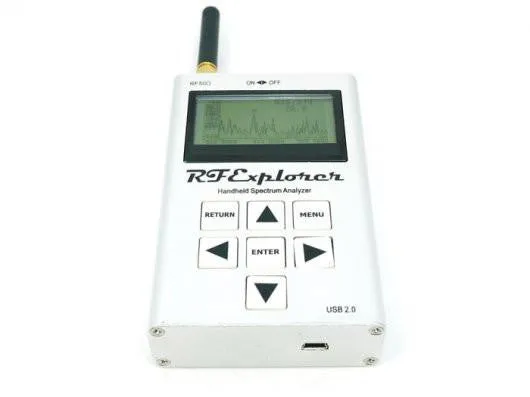

MODEL: 2.4G
Feature
- Pocket size and light weight
- Solid aluminum metal case
- Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes
- Integrated RF Signal Generator
- Lifetime free firmware upgrades available, open to community requested features
- High capacity Lipo for 16hs of continuous run, rechargeable by USB
- Windows PC client Open Source
- Can be extended with internal Expansion Modules for additional band and functionality
Specification
- Frequency band: 2400-2485 MHz
- Frequency span: 2-85 Mhz
- Graphics LCD 128x64 pixels, great visibility outdoors
- PC Windows client supports Windows XP/Vista/Win7 both 32 and 64bits
- Backlight for great indoor visibility
- Standard SMA 50 ohms connector, a matching antenna is included
- Amplitude resolution: 0.5dBm
- Dynamic range: -105dBm to -15dBm
- Absolute Max input power: 5dBm
- Average noise level (typical): -100dBm
- RF Generator amplitude: -30dBm to 1dBm
- Frequency stability and accuracy (typical): -10ppm
- Amplitude stability and accuracy (typical): -3dBm
- Frequency resolution: 1Khz
- Resolution bandwidth (RBW): automatic 58Khz to 812Khz
- Weight: 185g
- Size: 113x70x25 mm
RF Explorer handling care suggested link:
For more information, please
If you encounter any problems when using this product, please contact rfexplorer(at)arocholl.com for the technical support.
